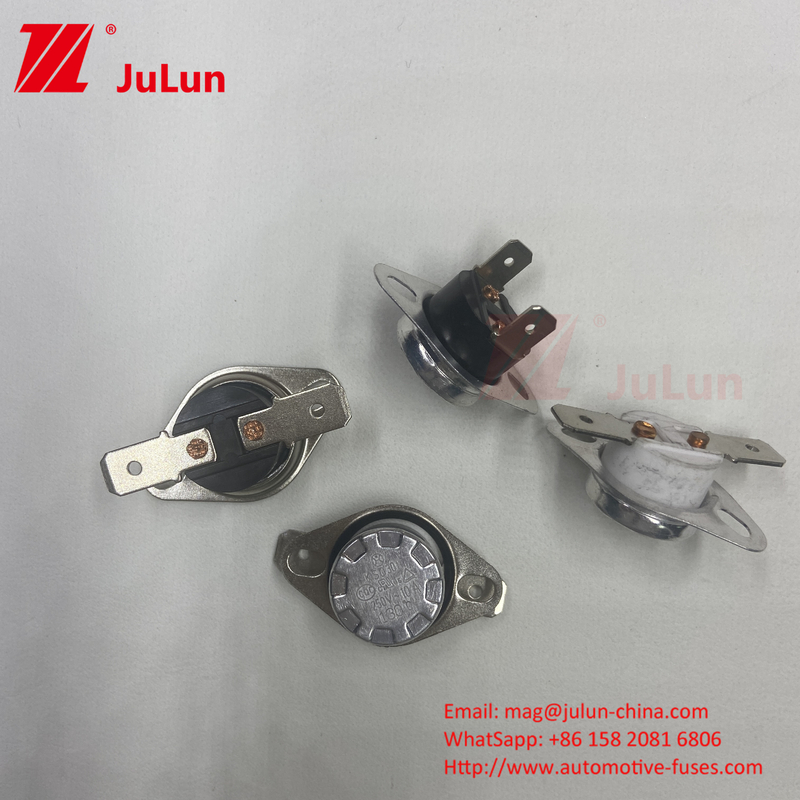

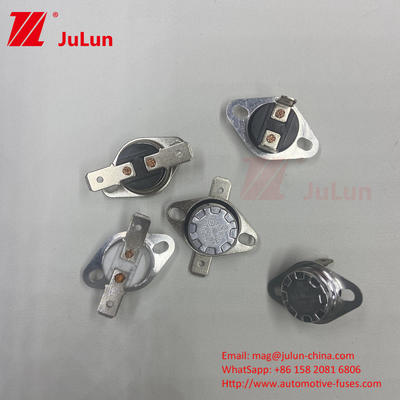

KSD301 with Life Cycle ≥100000 Times and Low Circuit Resistance ≤50mΩ Initial Value
รายละเอียดสินค้า:
| Place of Origin: | China |
| ชื่อแบรนด์: | JULUN |
| ได้รับการรับรอง: | CE UL CCC |
| Model Number: | KSD301 KSD302 Bimetal Thermostat |
การชำระเงิน:
| Minimum Order Quantity: | 100 |
|---|---|
| ราคา: | 0.7~1.5 |
| Packaging Details: | Carton |
| Delivery Time: | 1~2weeks |
| Payment Terms: | T-T |
| Supply Ability: | 1000K/times |
|
ข้อมูลรายละเอียด |
|||
| Terminal type: | A. Terminal Type: 187series Of 4.8*0.5mm And 4.8*0.8mm, 250 Series Of 6.3*0.8mm B. Terminal Angle: Bending Angle: 0~90°C Optional | Recovery and action temperature difference: | 0 To 25 Degrees, Or According To Client's Request. |
|---|---|---|---|
| Model name: | KSD301 KSD302 | Temperature sensor face: | Aluminum Cap Or Copper Head. |
| Contact type: | Normally Closed Or Normally Open | Life cycle: | ≥100000 Times |
| Insulation resistanc: | AC50Hz 1500V / Min, No Breakdown Blinding (Normal State) | Circuit resistance: | ≤50mΩ (Initial Value) |
รายละเอียดสินค้า
Product Description:
The temperature sensor face of the Thermistor Temperature Sensor is made of aluminum cap or copper head, which ensures that the temperature measurement is accurate and reliable. The product is equipped with two kinds of mounting brackets: movable or immovable, which makes it easy to install and use.
The Thermistor Temperature Sensor is designed to provide accurate temperature readings with a temperature deviation of ±3 / ±5 / ±10 Degree or according to client's request. This ensures that you get the most precise temperature readings, which is essential for various applications.
The Thermistor Temperature Sensor is perfect for use in various applications, such as M6, hot water kettle, and hexagonal. It is highly efficient and reliable, and it is designed to provide you with maximum accuracy and performance. With its high-quality construction and superior performance, the Thermistor Temperature Sensor is a must-have for anyone who needs to measure temperature accurately and reliably.
Features:
- Product Name: Thermistor Temperature Sensor
- Life cycle: ≥100000 Times
- Voltage & Current: AC 125V Max 15A; AC250V 5A 10A 15A Max 16A
- Recovery and action temperature difference: 0 To 25 Degrees, Or According To Client's Request.
- Model name: KSD301 KSD302
- Terminal type:
- A. Terminal Type: 187series Of 4.8*0.5mm And 4.8*0.8mm, 250 Series Of 6.3*0.8mm
- B. Terminal Angle: Bending Angle: 0~90°C Optional
- Pin type: hexagonal
- Temperature control switch
Technical Parameters:
| Technical Parameter | Description |
|---|---|
| Action Temperature | 0~250℃ |
| Contact Type | Normally Closed Or Normally Open |
| Recovery and Action Temperature Difference | 0 To 25 Degrees, Or According To Client's Request |
| Terminal Type | A. Terminal Type: 187series Of 4.8*0.5mm And 4.8*0.8mm, 250 Series Of 6.3*0.8mm B. Terminal Angle: Bending Angle: 0~90°C Optional |
| Temperature Sensor Face | Aluminum Cap Or Copper Head |
| Insulation Resistance | AC50Hz 1500V/Min, No Breakdown Blinding (Normal State) |
| Housing | Plastic Or Ceramic |
| Voltage & Current | AC 125V Max 15A; AC250V 5A 10A 15A Max 16A |
| Temperature Deviation | ±3 / ±5 / ±10 Degree Or According To Client's Request |
| Life Cycle | ≥100000 Times |
This Thermistor Temperature Sensor product is suitable for temperature control in household appliances, with a threaded brass design.
Applications:
This temperature sensor is designed with two types of terminal options: 187 series of 4.8*0.5mm and 4.8*0.8mm and 250 series of 6.3*0.8mm. The terminal angle includes bending angle options from 0 to 90 degrees. The insulation resistance is AC50Hz 1500V / Min, with no breakdown blinding in the normal state. The contact type can be either normally closed or normally open.
The KSD301 KSD302 Thermistor Temperature Sensor is suitable for a wide range of product application occasions and scenarios. It can be used in household appliances, such as refrigerators, air conditioners, and water heaters. The sensor is also ideal for industrial equipment, such as ovens, boilers, and furnaces.
The threaded brass, M6 mounting bracket of this temperature sensor is available in two options: movable or immovable. The sensor can be easily installed and provides accurate temperature readings for precise control of temperature levels.
Customization:
Support and Services:
Our Thermistor Temperature Sensor product comes with full technical support and services to ensure that you are able to use it to its full potential. Our team of experts is available to help you with any technical questions or issues that you may encounter.
We also offer additional services such as calibration and customization to meet your specific needs. Our calibration services ensure that your sensor is accurate and reliable, while our customization services allow you to tailor the sensor to your unique requirements.
Additionally, we provide training and documentation to ensure that you and your team are able to use the sensor effectively and efficiently. Our goal is to provide you with the highest level of support and service to ensure your satisfaction with our product.
