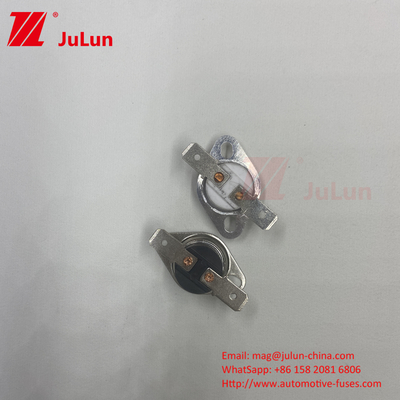

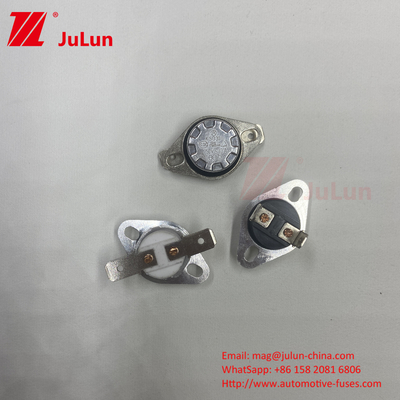

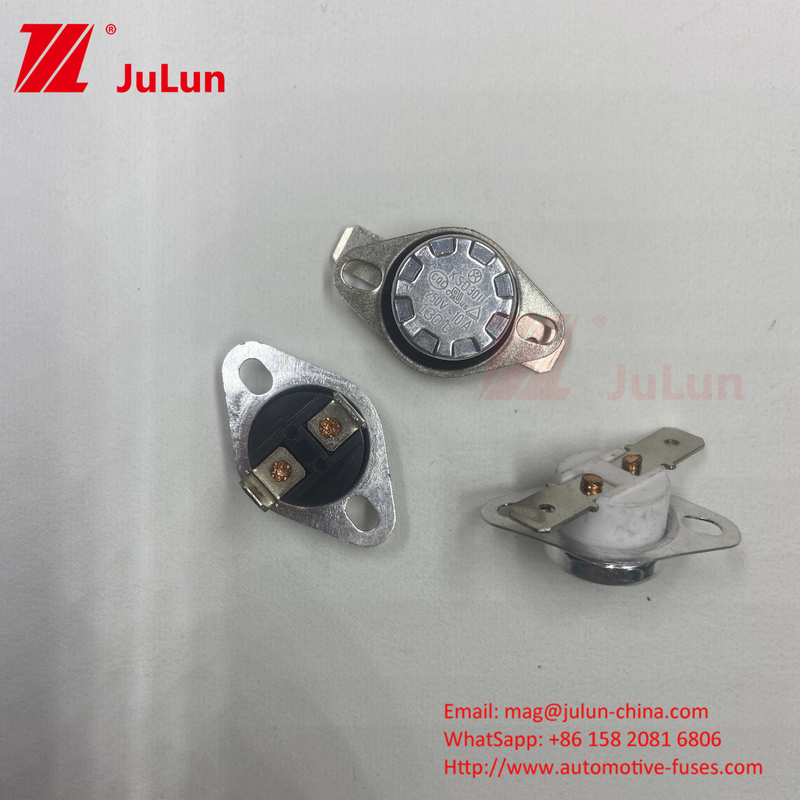

Disc Type KSD301 Bimetal Thermostat Plastic / Ceramic Body Optional
รายละเอียดสินค้า:
| Place of Origin: | China |
| ชื่อแบรนด์: | JULUN |
| ได้รับการรับรอง: | CE UL CCC |
| Model Number: | KSD301 KSD302 Bimetal Thermostat |
การชำระเงิน:
| Minimum Order Quantity: | 100 |
|---|---|
| ราคา: | 0.7~1.5 |
| Packaging Details: | Carton |
| Delivery Time: | 1~2weeks |
| Payment Terms: | T-T |
| Supply Ability: | 1000K/times |
|
ข้อมูลรายละเอียด |
|||
| Contact type: | Normally Closed Or Normally Open | Temperature deviation:: | ±3 / ±5 / ±10 Degree Or According To Client's Request |
|---|---|---|---|
| House: | Plastic Or Ceramic. | Two kinds of mounting bracket: | Movable Or Immovable |
| Circuit resistance: | ≤50mΩ (Initial Value) | Insulation resistanc: | AC50Hz 1500V / Min, No Breakdown Blinding (Normal State) |
| Terminal type: | A. Terminal Type: 187series Of 4.8*0.5mm And 4.8*0.8mm, 250 Series Of 6.3*0.8mm B. Terminal Angle: Bending Angle: 0~90°C Optional | Recovery and action temperature difference: | 0 To 25 Degrees, Or According To Client's Request. |
รายละเอียดสินค้า
Product Description:
In addition to its circuit resistance, the Thermistor Temperature Sensor also boasts excellent insulation resistance, with an AC50Hz 1500V / Min rating and no breakdown blinding in its normal state. This makes the sensor highly reliable and ensures that it provides accurate temperature readings even in challenging environments.
The Thermistor Temperature Sensor has a long life cycle of ≥100000 times, which makes it a durable and cost-effective choice for a range of applications. It is also available with two kinds of mounting bracket, making it easy to install and use in a variety of settings.
With an action temperature range of 0~250℃, the Thermistor Temperature Sensor is suitable for use in a wide range of applications, including incubators and HVAC systems. Its threaded brass design and 10~20A rating make it easy to install and use in a variety of settings, providing accurate and reliable temperature readings for years to come.
Features:
- Product Name: Thermistor Temperature Sensor
- Circuit resistance: ≤50mΩ (Initial Value)
- Contact type: Normally Closed Or Normally Open
- Recovery and action temperature difference: 0 To 25 Degrees, Or According To Client's Request.
- House: Plastic Or Ceramic.
- ActionTemperature: 0~250℃
- Hexagonal shape for easy installation
- Suitable for household appliances
- KSD301 model
Technical Parameters:
| Technical Parameter | Description |
|---|---|
| Contact Type | Normally Closed or Normally Open |
| Voltage & Current | AC 125V Max 15A; AC250V 5A 10A 15A Max 16A |
| Mounting Bracket | Movable or Immovable |
| Action Temperature | 0~250℃ |
| House | Plastic or Ceramic |
| Model Name | KSD301 KSD302 KSD 130°C 92°C 55°C |
| Temperature Sensor Face | Aluminum Cap or Copper Head |
| Recovery and Action Temperature Difference | 0 to 25 degrees, or according to client's request |
| Terminal Type | A. Terminal Type: 187series of 4.8*0.5mm and 4.8*0.8mm, 250 series of 6.3*0.8mm B. Terminal Angle: Bending Angle: 0~90°C Optional |
| Temperature Deviation | ±3 / ±5 / ±10 degree or according to client's request |
This Thermistor Temperature Sensor is suitable for household appliances, incubators, and can measure temperatures from 0~250°C.
Applications:
Our product is certified with CE, UL, and CCC, ensuring that it meets the highest standards of safety and quality. The minimum order quantity is 100, and the price ranges from 0.7 to 1.5, making it an affordable and accessible option for a wide range of customers. Our packaging is also designed to protect the product during shipping, with a sturdy carton that ensures it arrives in perfect condition.
The JULUN Thermistor Temperature Sensor is perfect for a variety of applications, including in household appliances. Its jump switch feature makes it easy to install and use, and its recovery and action temperature difference of 0 to 25 degrees (or according to the client's request) ensures that it responds quickly and accurately to changes in temperature.
Our product is designed to have a circuit resistance of ≤50mΩ (initial value) and an action temperature range of 0~250℃, and is available in a plastic or ceramic housing. It has a long life cycle of ≥100000 times, ensuring that it will last for many years to come.
If you're looking for a reliable and affordable temperature sensor for your household appliances, the JULUN Thermistor Temperature Sensor is an excellent choice. Order now and experience the convenience and accuracy that our product provides!
Customization:
Brand Name: JULUN
Model Number: KSD301 KSD302 Bimetal Thermostat
Place of Origin: China
Certification: CE UL CCC
Minimum Order Quantity: 100
Price: 0.7~1.5
Packaging Details: Carton
Delivery Time: 1~2weeks
Payment Terms: T-T
Supply Ability: 1000K/times
Two kinds of mounting bracket: Movable Or Immovable
Temperature sensor face: Aluminum Cap Or Copper Head.
Insulation resistance: AC50Hz 1500V / Min, No Breakdown Blinding (Normal State)
Recovery and action temperature difference: 0 To 25 Degrees, Or According To Client's Request.
Terminal type: A. Terminal Type: 187series Of 4.8*0.5mm And 4.8*0.8mm, 250 Series Of 6.3*0.8mm B. Terminal Angle: Bending Angle: 0~90°C Optional
This temperature sensor is suitable for a variety of applications, including temperature controller, hot water kettle, incubator, and more.
Support and Services:
Our Thermistor Temperature Sensor product comes with comprehensive technical support and services to ensure smooth and efficient operation. Our team of experts is available to provide assistance with installation, calibration, and troubleshooting. We also offer training to help you maximize the benefits of our product.
In addition, we provide regular firmware updates to ensure that our product is up-to-date and performing optimally. We also offer customization services to meet your unique requirements and specifications. Our goal is to provide you with the best possible experience and support throughout the lifespan of our product.
Packing and Shipping:
Product Packaging:
- The Thermistor Temperature Sensor comes in a securely sealed plastic bag.
- The plastic bag is then placed in a cardboard box.
- The cardboard box is filled with protective packaging material to prevent any damage during transport.
Shipping:
- The Thermistor Temperature Sensor is shipped via standard shipping methods.
- Shipping is available to most countries worldwide.
- Shipping charges will vary based on the destination and shipping method selected.
- Customers will receive a tracking number once the order has shipped.
FAQ:
Q1: What is the brand name of the thermistor temperature sensor?
A1: The brand name of the thermistor temperature sensor is JULUN.
Q2: What is the model number of the thermistor temperature sensor?
A2: The model number of the thermistor temperature sensor is KSD301 KSD302 Bimetal Thermostat.
Q3: Where is the thermistor temperature sensor manufactured?
A3: The thermistor temperature sensor is manufactured in China.
Q4: What certifications does the thermistor temperature sensor have?
A4: The thermistor temperature sensor has CE, UL, and CCC certifications.
Q5: What is the minimum order quantity of the thermistor temperature sensor?
A5: The minimum order quantity of the thermistor temperature sensor is 100.
Q6: What is the price range of the thermistor temperature sensor?
A6: The price range of the thermistor temperature sensor is between 0.7 and 1.5.
Q7: What are the packaging details of the thermistor temperature sensor?
A7: The packaging details of the thermistor temperature sensor are a carton.
Q8: What is the delivery time of the thermistor temperature sensor?
A8: The delivery time of the thermistor temperature sensor is 1 to 2 weeks.
Q9: What are the payment terms for the thermistor temperature sensor?
A9: The payment terms for the thermistor temperature sensor are T-T.
Q10: What is the supply ability of the thermistor temperature sensor?
A10: The supply ability of the thermistor temperature sensor is 1000K/times.
